- ATS BOXES FOR FRONIUS INVERTERS
Automatic Transfer Switching Engineered for Fronius
Pre-wired, pre-tested ATS solutions designed specifically for seamless integration with the full Fronius inverter range.
PRODUCT OVERVIEW
The Right Switch for the Right Inverter

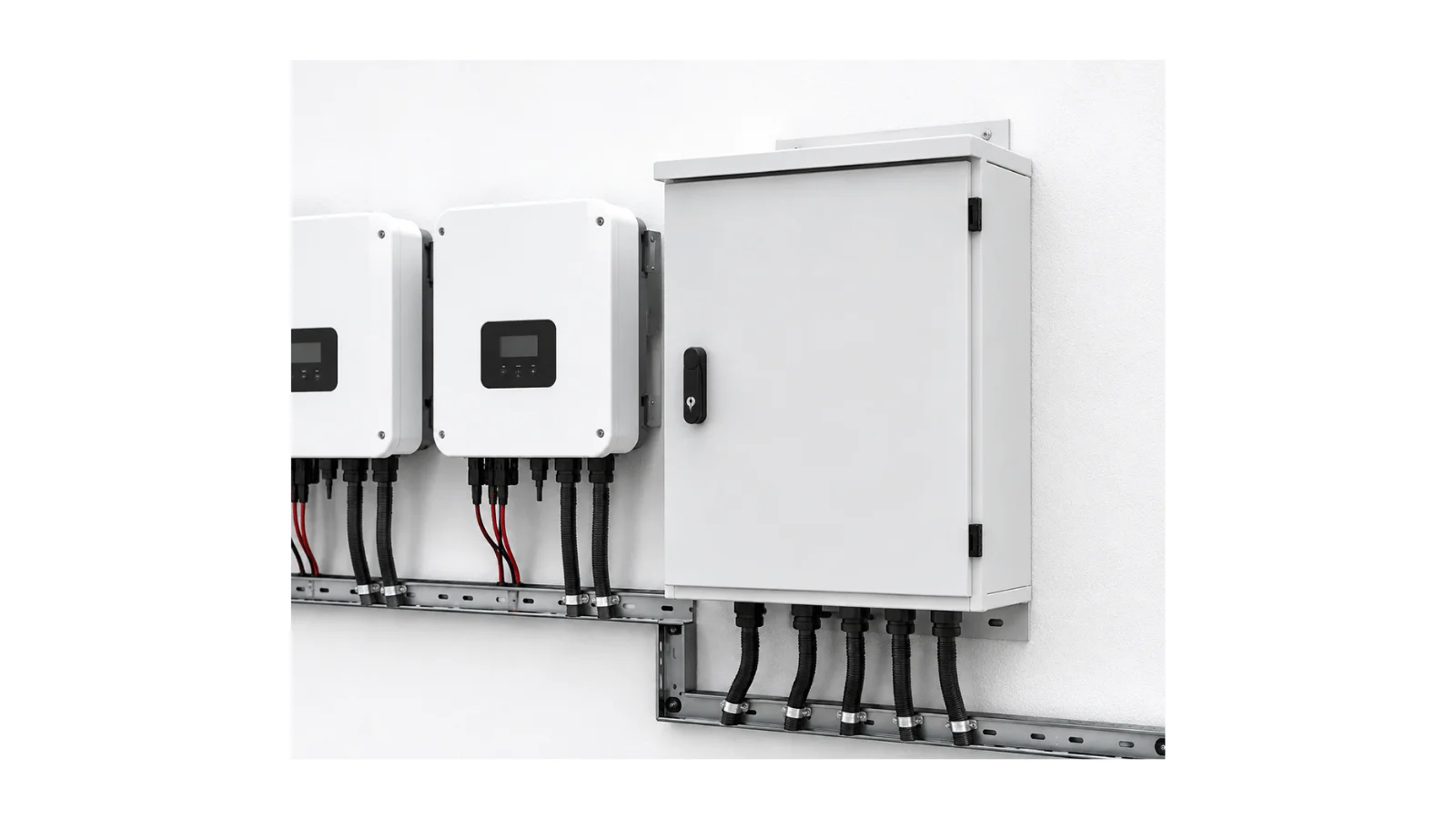

ATS (Automatic Transfer Switch) boxes engineered specifically for Fronius Primo, Symo, and Eco inverter systems. Designed to eliminate compatibility issues and provide seamless automatic transfer between grid, solar and backup modes — without the integration headaches of generic solutions.
Pre-wired and tested at our facility before dispatch — reducing on-site installation time significantly. Each unit arrives fully assembled with labelled terminals, pre-terminated cables, and a commissioning checklist.
Available in 63A, 100A and 160A ratings for single and three-phase configurations, covering residential through to large commercial systems.
Technical Specifications
Compatible Inverters
Fronius Primo / Symo / Eco
Transfer Time
< 20ms
Voltage Range
230/400V AC
Current Rating
63A / 100A / 160A
Switching
Automatic + Manual Override
Enclosure
IP54 Metal
Testing
Pre-wired & tested at factory
Warranty
2 Years
KEY FEATURES
Everything You Need, Nothing You Don't
Fronius-Specific Design
Engineered around the Fronius Primo, Symo and Eco communication interfaces — no adaptation or workarounds needed.
Pre-Wired & Pre-Tested
Fully wired, labelled, and function-tested before dispatch. Arrive on site ready to connect — saving hours of installation time.
< 20ms Transfer Time
Sub-20 millisecond transfer ensures seamless load continuity with virtually no perceptible interruption to critical loads.
Manual Override Included
Built-in manual override mechanism allows operators to transfer loads independently of automatic logic during maintenance.
IP54 Rated Enclosure
Robust IP54-rated metal enclosure protects internal components in commercial installations and plant room environments.
Plug-and-Play Installation
Pre-terminated cables and labelled terminals dramatically simplify on-site installation and reduce commissioning errors.
APPLICATIONS
Where ATS Boxes Are Deployed
Residential Backup Solar
Provides seamless switching between grid and solar for residential properties with backup power requirements during outages.
Commercial Solar with Battery
Coordinates automatic transfer between grid, solar generation and battery storage for commercial premises seeking energy independence.
Off-Grid Hybrid Systems
Essential switching component for off-grid and hybrid Fronius systems where grid-forming and grid-following modes must transition automatically.
Critical Load Protection
Used in data centres, cold storage, and medical facilities where load interruption must be minimised to sub-cycle transfer times.
BENEFITS
The GreenBox Difference
01
Seamless Transfer
Sub-20ms switching means sensitive electronics, LED lighting and most appliances never experience a perceptible interruption during grid/solar transition.
- < 20ms
02
Guaranteed Compatibility
Engineered specifically for Fronius — eliminating the compatibility issues, relay coordination problems, and integration hours that arise from generic ATS solutions.
- Fronius Ready
03
Faster Installation
Pre-wiring and factory testing means on-site installation is a straightforward termination exercise, not a commissioning project — typically completed in under two hours.
- < 2 Hours
FAQ
Questions & Answers
Have a question not covered here? Our engineering team is on hand to help with Fronius-specific integration queries.
Which Fronius inverter models are compatible with your ATS boxes?
Our ATS boxes are designed and tested for Fronius Primo (single-phase), Symo (three-phase), and Eco series inverters. Compatibility extends across the current firmware versions for all three platforms. Please confirm your specific inverter model when ordering.
Does the ATS box void the Fronius inverter warranty?
No. Our ATS boxes interface with standard Fronius I/O connections and do not modify the inverter itself. They comply with Fronius’s technical requirements for external switching and are compatible with Fronius warranty conditions.
Can your ATS boxes work with other inverter brands?
Our current ATS range is specifically designed and optimised for Fronius. For other inverter brands, we recommend our custom-made board service where we can engineer a transfer switch solution to your specific inverter’s requirements.
What is included in the factory pre-testing?
Each unit undergoes a full functional test cycle — automatic transfer actuation in both directions, manual override verification, control voltage testing, and a wiring continuity check. A test certificate is included with the documentation.
Does the ATS box meet Australian grid compliance requirements?
Yes. Our ATS boxes are designed to work within an AS4777-compliant grid protection scheme. They do not replace the grid protection relay function but are designed to interface correctly with compliant protection boards.
What is the warranty and support arrangement?
All GreenBox ATS Boxes carry a 2-year warranty from date of dispatch. Our technical team provides email and phone support for installation queries, and we can arrange site support for complex commissioning scenarios.
