- GB GATEWAY METER
Real-Time Energy Monitoring for Renewable Systems
The GB Gateway Meter provides accurate, real-time energy monitoring and data logging for solar, battery and grid systems.
PRODUCT OVERVIEW
Visibility Across Your Entire Energy System

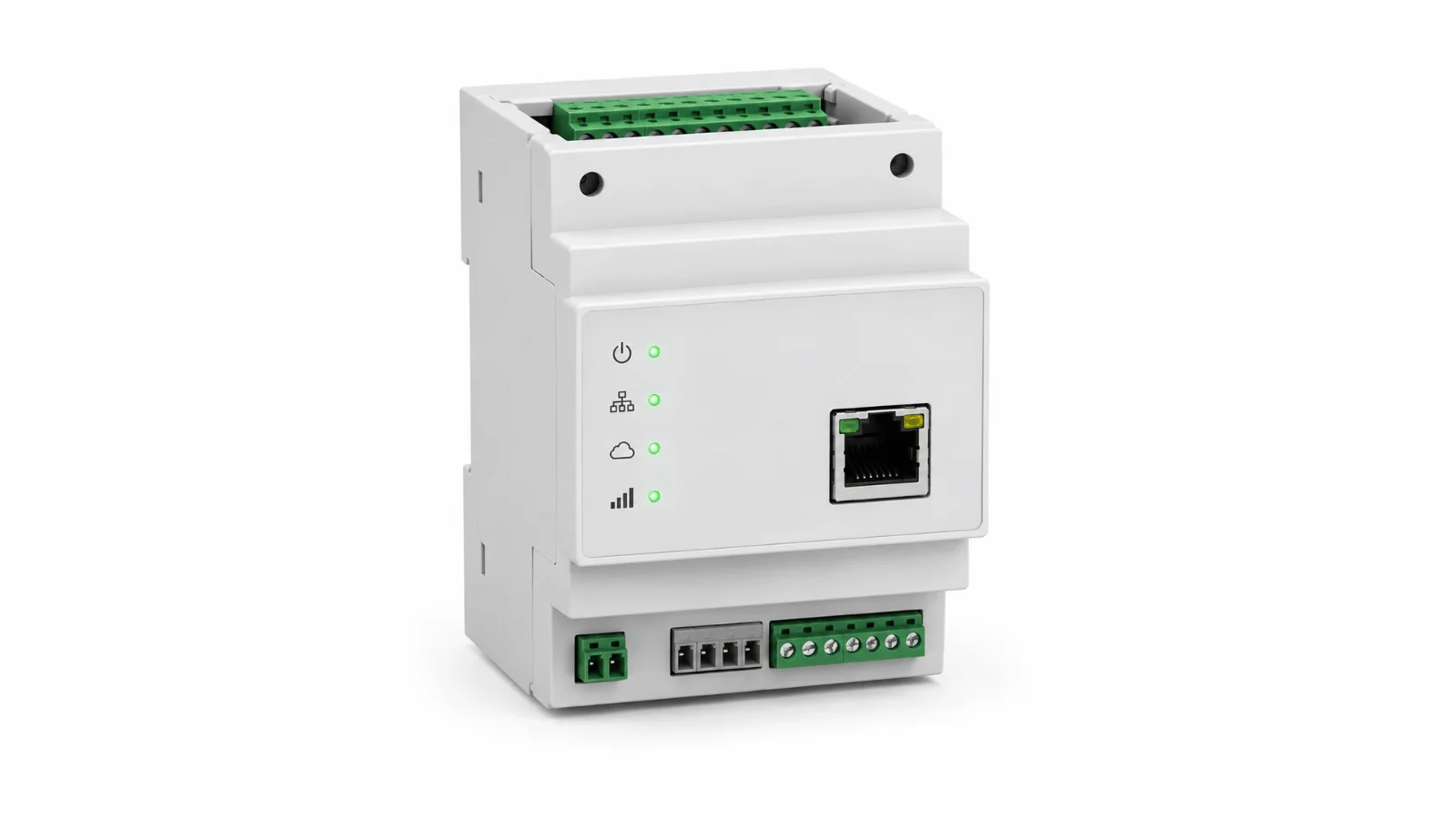

The GB Gateway Meter is GreenBox’s smart monitoring solution for renewable energy systems. Providing real-time measurement of solar generation, battery state, grid import/export and load consumption — all accessible via a web dashboard or API integration.
Designed for commercial and industrial systems where accurate energy data is critical for compliance, billing and optimisation. Class 1 metering accuracy meets DNSP and energy procurement reporting thresholds.
Open Modbus and REST API connectivity means the GB Gateway integrates with any modern BMS, SCADA or energy management platform — without proprietary lock-in.
Technical Specifications
Measurement
Voltage, Current, Power, Energy (kWh)
Accuracy
Class 1 (IEC 62053)
Communications
Ethernet, RS485, Modbus TCP/RTU
Data Logging
15-min intervals (configurable)
Display
4.3" colour LCD
Inputs / Outputs
4DI / 4DO
Power Supply
85–265V AC
Operating Temp
-10°C to +55°C
Certifications
AS4777.3, IEC 62052-11
KEY FEATURES
Everything You Need to See Everything
Real-Time Dashboard
Live power flow visualisation — solar generation, battery state, grid import/export and load consumption displayed on a web interface accessible from any device.
Multi-Circuit Monitoring
Monitor up to 12 circuits simultaneously on a single gateway — suitable for complex C&I sites with multiple loads, inverters and storage systems.
Grid Export/Import Metering
Class 1 bidirectional metering for accurate grid import and export measurement — suitable for feed-in tariff billing and network reporting.
DNSP Reporting Compliant
Data formats and reporting intervals configured to meet DNSP monitoring and export management requirements under AS4777.3.
API Integration
RESTful API and Modbus TCP access enables integration with BMS, SCADA, energy management and billing platforms.
Modbus / RS485 Communications
RS485 Modbus RTU for direct connection to inverters, meters and battery management systems — no additional gateways required.
APPLICATIONS
Deployed Across C&I Renewable Projects
C&I Solar Monitoring
Provides accurate generation, consumption and export data for commercial and industrial solar system owners and their energy managers.
Grid Export Compliance
Configured to AS4777.3 for dynamic export control applications — providing the metering function required by DNSPs for export-limited solar systems.
Battery System Monitoring
Monitors battery state of charge, charge/discharge cycles and energy throughput alongside solar and grid — providing a complete system energy picture.
Virtual Net Metering
Supports multi-site and embedded network metering applications where precise allocation of energy between tenants or sites is required.
Download Broucher
PRODUCT BROCHURE
GB Gateway Meter
Explore the complete specifications, features, and integration capabilities of the GB Gateway Meter for smarter energy infrastructure.
BENEFITS
Why Choose the GB Gateway
01
Accurate, Bankable Data
Class 1 metering accuracy meets the threshold required for energy procurement reporting, PPA compliance monitoring and DNSP submissions.
02
Open Integration
Modbus, RS485 and REST API connectivity means the GB Gateway integrates with any modern BMS, SCADA or energy management platform without proprietary lock-in.
03
Optimise System Performance
15-minute interval logging and real-time dashboards identify underperforming strings, battery dispatch inefficiencies and load management opportunities.
FAQ
Monitoring Questions
Have integration or compliance questions? Our technical team can advise on DNSP acceptance and platform integration.
How is the GB Gateway accessed remotely?
The GB Gateway connects to your site LAN via Ethernet. Remote access is provided via a web dashboard accessible from any browser — no dedicated software installation required. For sites without reliable internet, local access via the 4.3″ LCD and RS485 Modbus is available.
Can I access historical data and export reports?
Yes. The gateway logs data at configurable intervals (default 15 minutes) and stores up to 12 months of interval data locally. Historical data is exportable in CSV format from the web interface and is also available via the REST API for integration with reporting platforms.
What inverter brands are compatible via Modbus?
The GB Gateway includes pre-configured Modbus maps for Fronius, SMA, Sungrow, Huawei and GoodWe inverters. Custom Modbus mappings can be configured for other inverter brands. Contact our technical team to confirm compatibility with your inverter model.
Is the GB Gateway accepted by DNSPs for AS4777.3 monitoring?
The GB Gateway is configured to meet AS4777.3 monitoring and data reporting requirements and has been accepted by major DNSPs including Ausgrid and Energex for export management applications. DNSP acceptance is always subject to individual application review — contact us for project-specific guidance.
How is the gateway installed and commissioned?
Installation involves connecting voltage and current inputs to the circuits to be monitored, Ethernet connection to the site LAN, and a 240V AC power supply. Commissioning is completed via the web interface. GreenBox provides remote commissioning support as standard and on-site support as an optional service.
